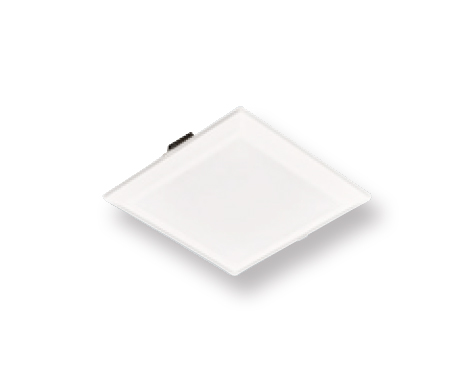

LED Sensor Light- Embedded

DSEN-215DS

A basic sensor of PIR type and can switch the operation mode at always and at night. If additional sensing is detected within 20 seconds, the operating time is extended by the time sensed. Sensitivity control switch can adjust the intensity of the sensing sensitivity. It is equipped with a sensor cover for adjusting the sensing direction, which can suppress unnecessary sensing. It is inserted into the ceiling hole and the spring on the both side supports the luminaires.
Suitable for hotel, porch, stairs, elevator entrance, veranda, corridor, etc.

  • Quantity
Origin Made in Korea
Certificate KS, Q-Mark
Packing Standard 10 per box, 53cm x 27.5cm x 40cm
Advantages
  • Eco-Friendly product with LED
  • Design in consideration of the suit to a variety of dwelling interior space
  • State-night switch, built-in sensitivity adjustment switch
  • Reduce electric bill more than 70%compared to incandescent ceiling sensor light
  • Suitable for hallway, balconies, and stair in houses and apartments
Specification
Product Name DSEN-215DS
Power(W) 15
Working Voltage(V) AC180-260, 50/60Hz
Luminous Flux(lm) 1200
Efficacy(lm/W) Over 80
Power Factor(PF) Over 0.90 (HIGH PF)
Color Temperature(K) 6500
Sensor Over 1E5 (100,000)
Detecting Distance 5m
Shine Delay Time About 20 seconds
Life Span(Normal Temperature and Humid) Over 15000h
Size(mm) 244 x 244 x 72
Aperture(mm) Φ210 ± 10
Ceiling Thickness(mm) 1~16
Material PP
