COB High Mast Light

FBR1200ACSH

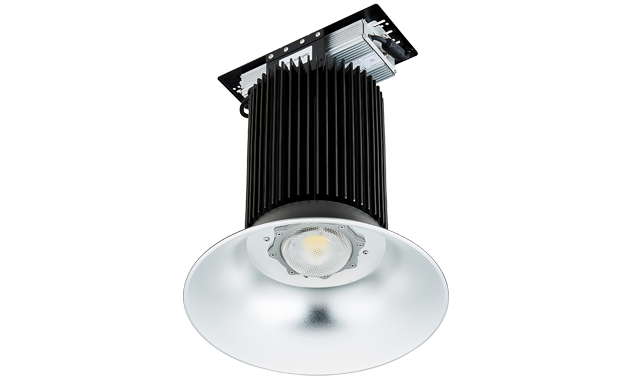

This is an high-efficacy COB circular floodlight with an external converter attached to the back of the luminaire. The LED module consists of two COBs and is covered with a reflector and a front cover. The LED heatsink has an aluminum heatsink fin and heat pipe structure to ensure perfect heat dissipation. The front light distribution characteristic is based on the double-beam type (30 degrees).
Suitable for port, shipyard, airport, shed, gymnasium, stadium, large parking lot, etc.

  • Quantity
Origin Made in Korea
Certificate KS, Q-Mark
Packing Standard 1 per box, cm x cm x cm
Advantages
  • The LED module consists of COB and is covered with a reflector and a front cover
  • Suitable for port, shipyard, airport, shed, gymnasium, stadium, large parking lot, etc.
  • IP66
Specification
Product Name FBR1200ACSH
Power(W) 1200
Working Voltage(V) AC180-260, 50/60Hz
Power Factor(PF) Over 0.95 (High PF)
Color Temperature(K) 5700
Luminous Flux(lm) 120000
Efficacy(lm/W) Over 100
CRI(Ra) Over 80

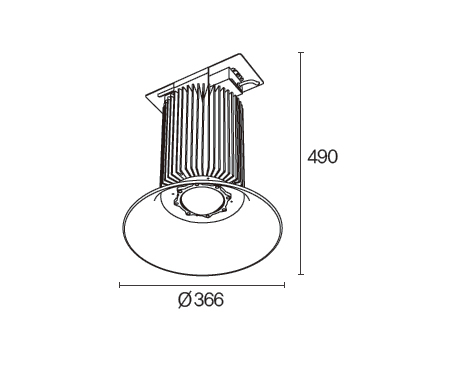

Size(mm) 606.5 × 345 × 350.5
Color BLACK
Material AL, PC, GLASS
IP Grade 66
