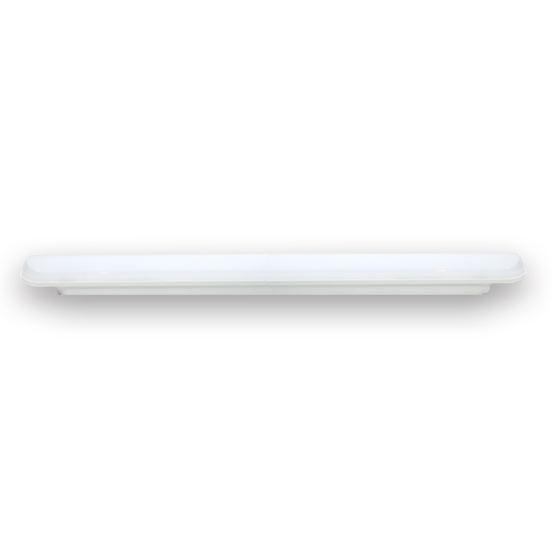

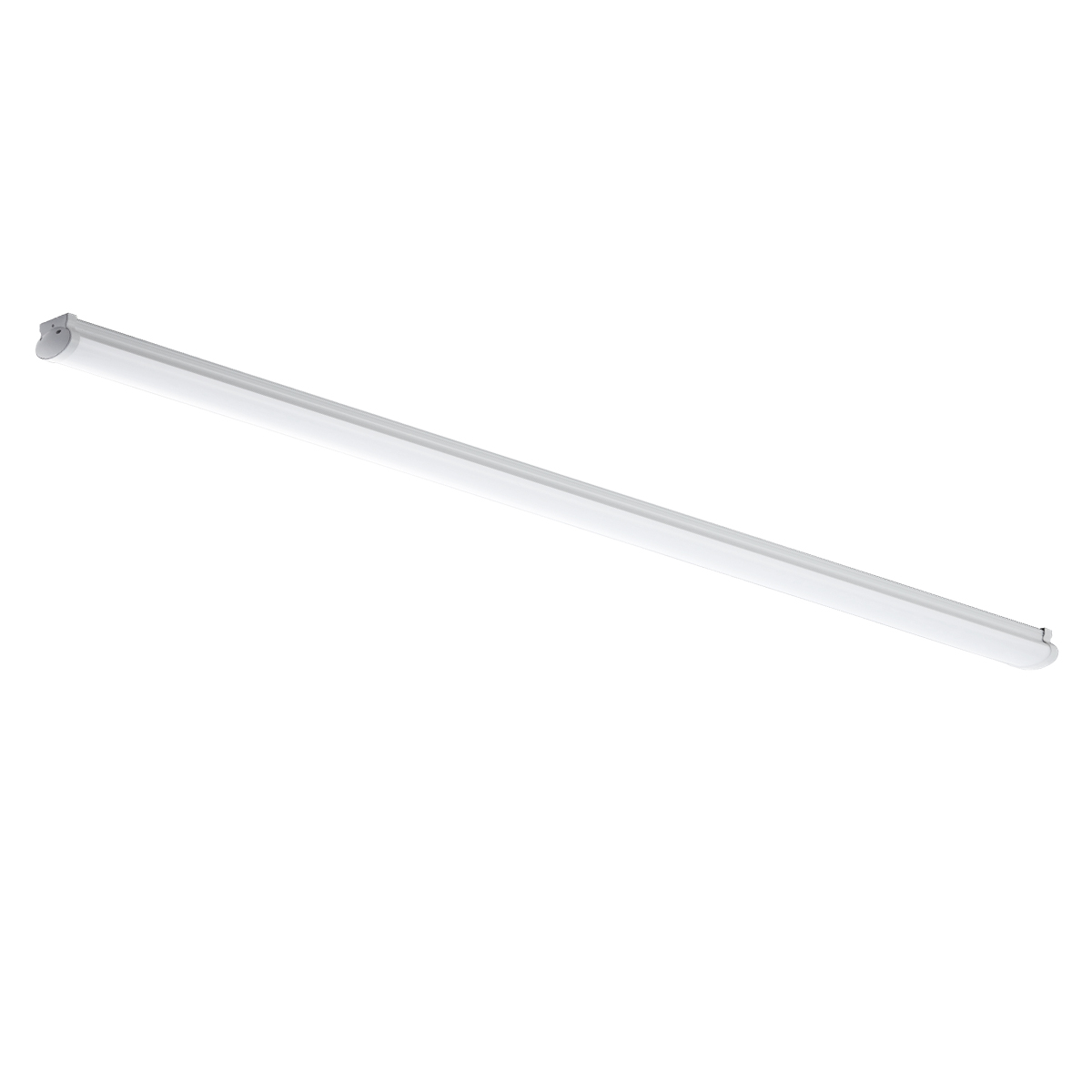

Triangular Light(Waterproof)

PAT040, PAT100

IP65 Triangular Light gives off the generous light diffusion and it is perfect for placing directly above a mirror at bathroom as well as kitchen, school, laboratory.
suitable for ceiling, cove lighting, under cabinet lighting, decorative lighting, kitchen and bedroom lighting, edge lighting.

Option
    선택된 상품의 옵션리스트 입니다.
Total: $ 0
Origin Made in Korea
Certificate KS
Packing Standard 10 per box, 64.5cm x 30.5cm x 38.7cm/ 6 per box
Advantages
  • IP 65, available for outdoor and indoor with high humidity.
  • Triangular shaped light gives off the generous light diffusion.
  • Easy to install.
Specification
Product Name PAT040 PAT100
Power(W) 40 100
Power Factor(PF) Over 0.90 (High PF) Over 0.90 (High PF)
Working Voltage AC180-260, 50/60Hz AC180-260, 50/60Hz
Color Temperature(K) 6500 / 2700 6500 / 2700
Luminous(lm) 4400 / 3600 9000 / 8000
Efficacy(lm/W) Over 110 / 90 Over 90 / 80
CRI(Ra) Over 80 Over 80

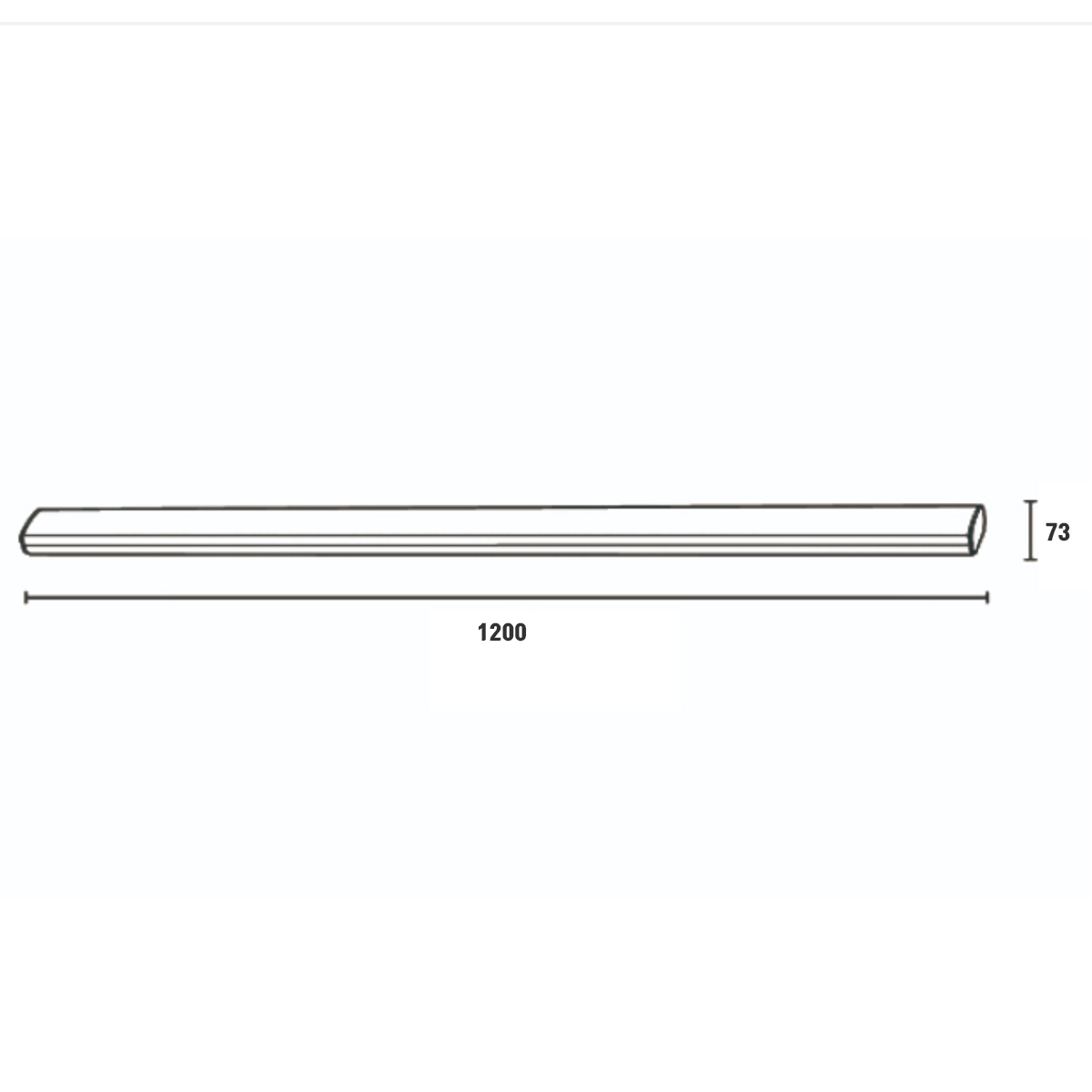

Size(mm) 598 x 137.2 x 75 1198 x 137.2 x 75
Temp Range(℃) -10 ~ 40 -10 ~ 40
Life Span(Normal Temperature and Humid) 15000h 15000h
Material PC PC
Color WHITE WHITE
Weight 750g 1.35kg
IP Grade 65 65
